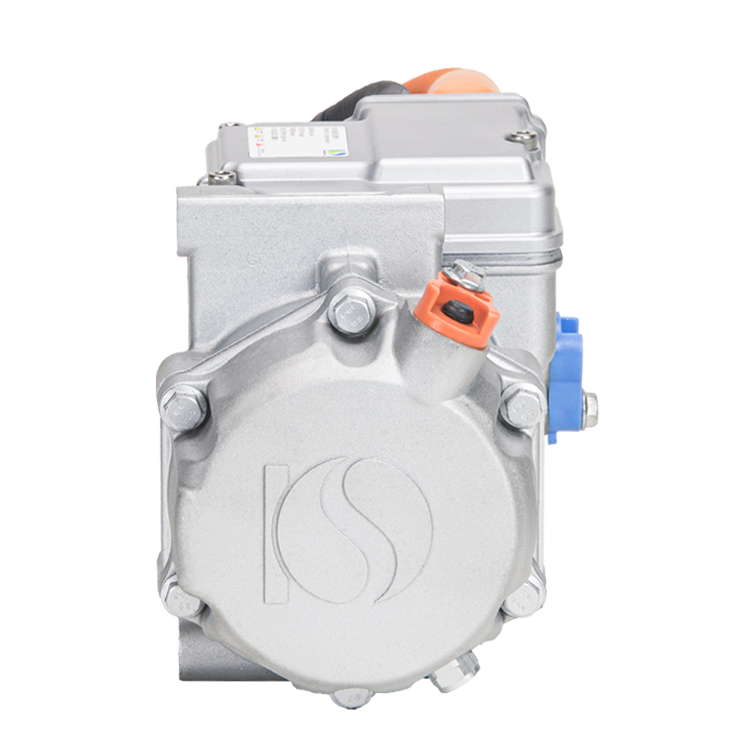

Product name:Flying Lead Type
Model:PD2(PH2)-14
Displacement(ml/r):14CC
Dimension(mm):182*123*155
Speed range(rpm):2000-8000
Net mass(kg):4.6
Refri:R134a
转速Speed 性能Performance | 2000 | 3000 | 4000 | 5000 | 6000 | |
14CC | 制冷量(W)/(Btu/h) Cooling Capacity | 850/2900 | 1330/4500 | 1820/6200 | 2310/7900 | 2780/9500 |
| 能耗(W)/(Btu/h) Rated Power | 360 | 520 | 690 | 880 | 1100 | |
| COP | 2.3 | 2.5 | 2.6 | 2.6 | 2.5 | |
Product name:Flying Lead Type
Model:PD2(PH2)-14
Displacement(ml/r):14CC
Dimension(mm):182*123*155
Speed range(rpm):2000-8000
Net mass(kg):4.6
Refri:R134a
转速Speed 性能Performance | 2000 | 3000 | 4000 | 5000 | 6000 | |
14CC | 制冷量(W)/(Btu/h) Cooling Capacity | 850/2900 | 1330/4500 | 1820/6200 | 2310/7900 | 2780/9500 |
| 能耗(W)/(Btu/h) Rated Power | 360 | 520 | 690 | 880 | 1100 | |
| COP | 2.3 | 2.5 | 2.6 | 2.6 | 2.5 | |
